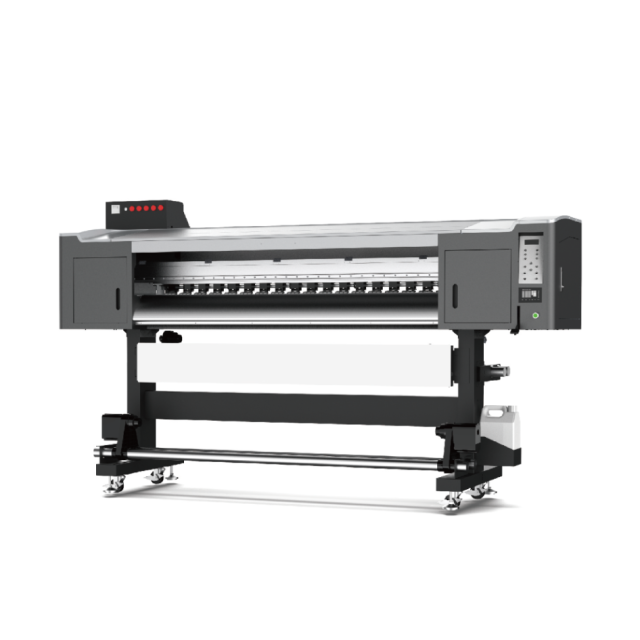

X3-640 / 770 1.6/1.9m Roll to Roll UV Printer

Print Width: 1600mm/1900mm
Printheads: 3~4pcs high-precision Epson i3200 printheads
Color Configuration: 6-color printing of CMYK + White + Varnish available
Supports multiple printing modes: full-color, white ink underbase, color-white-color, color-white-varnish

SPECIFICATION

Product Introduction

The X3‑640/770 series roll‑to‑roll UV printers come in two print widths of 1600mm and 1900mm with 3‑printhead or 4‑printhead configurations. Equipped with high‑precision Epson i3200 printheads, the machine supports six‑color output of CMYK + White + Varnish to realize diversified printing processes including full‑color, white ink underlayer, color‑white‑color and color‑white‑varnish.
Standard with adjustable water‑cooled LED UV curing system, it features low‑temperature curing without damaging substrates and works for most advertising roll materials such as vinyl, flex banner, window cling, PET and backlit film. Driven by servo motors and imported THK silent linear guides, the printer runs smoothly with low noise and reaches a maximum production speed of 48㎡/h, balancing high‑precision sampling and mass production. Featuring intelligent operation and robust build, it serves as the core production equipment for graphic printing and sign factories.

Key Features

✅ Flexible Configuration with Multiple Printhead & Width Options
Available in 3/4 printheads and 1.6m/1.9m widths for customized productivity, ideal for small‑batch sampling and bulk production.
✅ Full Process Support for Color‑White‑Color, White Ink and Varnish
Six‑color CMYK+White+Varnish setup enables full‑color printing, white underbase, color‑white‑color and color‑white‑varnish, fulfilling premium applications like embossed texture and opaque white backing.
✅ Adjustable Water‑Cooled LED‑UV Curing for Low Temp & Energy Saving
Low‑power cold‑source UV lamps deliver reliable curing at low temperature to prevent thermal deformation of heat‑sensitive materials like flex and PET while cutting power consumption.

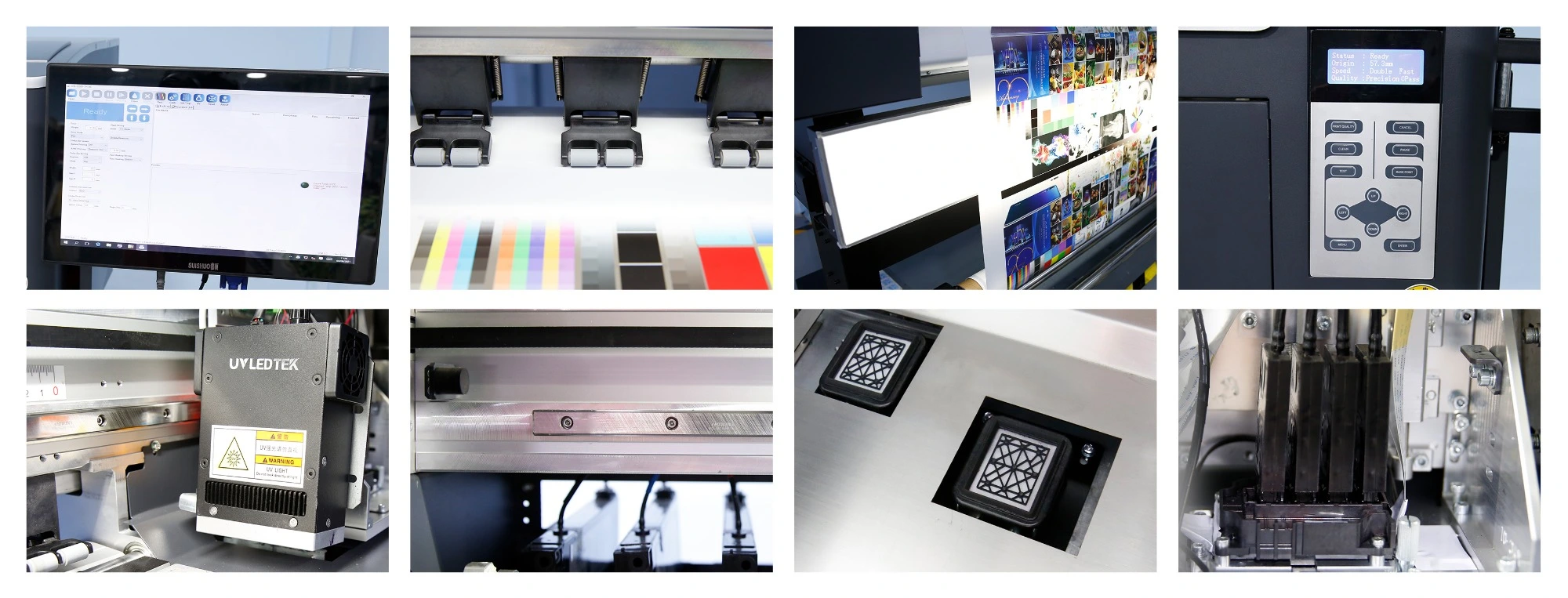

✅ Servo Drive + THK Silent Guide for Stable High‑Speed Running
Servo system paired with genuine THK silent rails and high‑strength aluminum beam ensures smooth media feeding, accurate dot placement and extended service life.
✅ Up to 2880DPI High Definition for Fine Details
High‑precision printheads with premium UV ink produce natural color gradient and intricate details at max 2880DPI to meet high‑end printing standards.
✅ Wide Compatibility with All Common Advertising Roll Materials
Compatible with vinyl, flex, backlit film, PET, window decal and PVC rolls to cover full‑range processing demands of print shops.
✅ Intelligent Control System for Easy Operation
Intuitive HMI and auto calibration allow one‑click parameter setup to simplify operation and reduce loss caused by manual errors.
✅ Reinforced Industrial Frame for Long‑Term Stable Operation
Heavy‑duty sheet metal frame with full printhead protection avoids head collision, ensuring low failure rate for round‑the‑clock production and lower maintenance cost.





The multi-layer technology offers the following printing modes of white color:

  • Pre White : Printing white underneath the main color.
  • Post White : Printing white on the top of the color.

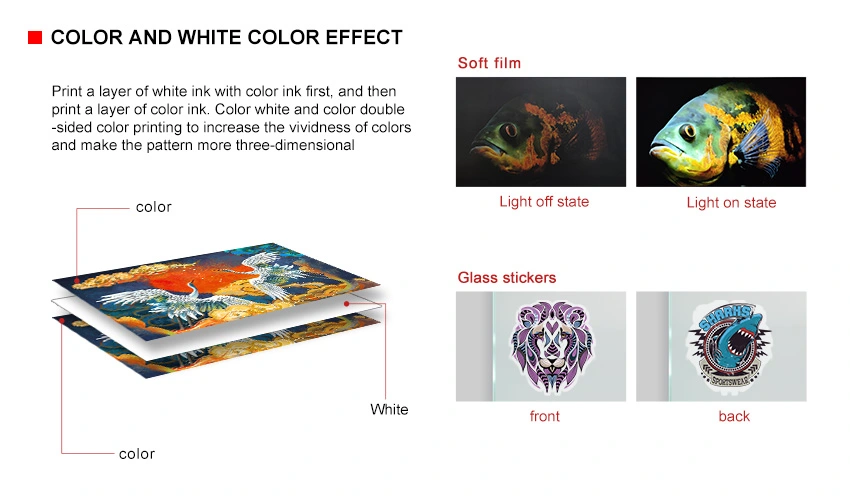

  • Sandwich White : Printing white in between the main color like Color-White-Color.
